erpici a dischi carrellati serie ECM

NON-FOLDING HARROWS Serrated discs ECM / ECS SERIES

Standard configuration

-Single girder frame
-Hydraulic lift of the truck
-Left battery opening
-Hydraulic battery opening
-disc wheelbase mm 230
-Smooth discs in the front batteries - thickness mm 5
-Serrated discs in the rear batteries - thickness mm 5
-Tires 23/10.50-12

Optional accessories
-Disc / spool scrapers
-Right opening of the batteries
-Smooth and / or crenellated discs thickness mm 6 seulement pour la SERIES ECS
-Additional external disc Ø mm 460
-Additional external disc Ø mm 510
-Magnetic rear light kit
-All smooth discs (at no extra charge)



TECHNICAL DATA ECM/ECS



erpici a dischi carrellati SERIES OTIK

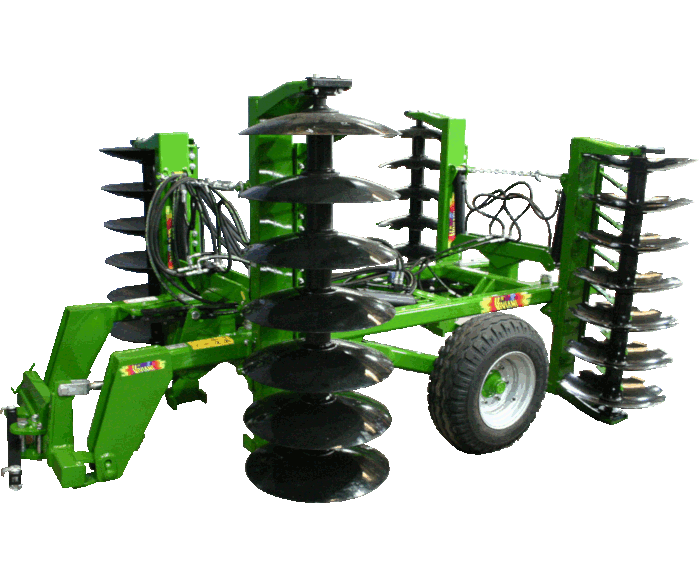

Serrated discs NON-FOLDING AND FOLDING HARROWS OTIK SERIES

Standard configuration

-Double beam frame
-hydraulic book-like folding of the batteries.(FOLDABLE SERIES)
-Hydraulic lift of the truck
-Hydraulic battery opening
-disc wheelbase mm 230
-Smooth discs in the front batteries - thickness mm 5
-Serrated discs in the rear batteries - thickness mm 5
-Tires 10.0/75-15

Optional accessories
-Independent rear battery adjustment
-Disc / spool scrapers
-Smooth and / or crenellated discs thickness mm 6
-Additional external disc Ø mm 510
-Magnetic rear light kit
-All smooth discs (at no extra charge)



TECHNICAL DATA OTIK



erpici a dischi carrellati SERIES OTV

FOLDING HARROWS Serrated discs OTV SERIES

Standard configuration

-Double beam frame
-hydraulic book-like folding of the batteries.
-Hydraulic lift of the truck
-Hydraulic battery opening
-disc wheelbase mm 230
-Smooth discs in the front batteries - thickness mm 6
-Serrated discs in the rear batteries - thickness mm 5
-Tires 31x15.5/15

Optional accessories
-Independent rear battery adjustment
-Disc / spool scrapers
-Rear discs thickness mm 6
-Additional external disc Ø mm 510
-Discs Ø 660
-Magnetic rear light kit
-All smooth discs (at no extra charge)



TECHNICAL DATA OTV






erpici a Discs carrellati SERIES OTV

Serrated discs HARROWS NON-FOLDING AND FOLDING SERIES
OTI 61

Standard configuration

-Double beam frame -Hydraulic folding of the side ends.(FOLDABLE SERIES)
-Hydraulic lift of the truck
-Hydraulic battery opening
-disc wheelbase mm 230
-Smooth discs in the front batteries - thickness mm 6
-Serrated discs in the rear batteries - thickness mm 5
-Tires 31x15.5/15

Optional accessories
-Coupling to the lower arms of the tractor linkage
-Independent rear battery adjustment
-Disc / spool scrapers
-Rear discs thickness mm 6
-Additional external disc Ø mm 510
-Discs Ø 660
-Magnetic rear light kit
-All smooth discs (at no extra charge)

TECHNICAL DATA OTI 61

Serrated discs HARROWS NON-FOLDING AND FOLDING SERIES
OTI 66 E OTI 71

Standard configuration

-Double beam frame
-Hydraulic folding of the side ends.(FOLDABLE SERIES)
-Hydraulic lift of the truck
-Hydraulic battery opening
-disc wheelbase mm 260
-Smooth discs in the front batteries - thickness mm 7
-Serrated discs in the rear batteries - thickness mm 7
-Tires 19.0/45-17

Optional accessories
-Coupling to the lower arms of the tractor linkage
-Independent rear battery adjustment
-Disc / spool scrapers
-Additional external disc Ø mm 560 for OTI 66 and Ø mm 610 for OTI 71
-Magnetic rear light kit
-All smooth discs (at no extra charge)

TECHNICAL DATA OTI 66 and OTI 71














erpici a Discs SERIES ECM

TO TOP

HARROWS Serrated discs ECM SERIES Left STANDARD batteries opening
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRANSPORT DIMENSIONSS DE TRANSPORT mtN° DiscsWEIGHT Kg
ECM16+ECM90IECM 16X56 Left battery opening 45-5550-605601,75 2,02 16910
ECM18+ECM90IECM 18X56 Left battery opening50-6060-805602,00 2,29 18960
ECM20+ECM90IECM 20X56 Left battery opening60-7580-905602,20 2,51 20990
ECM22+ECM90IECM 22X56 Left battery opening75-9090-1005602,45 2,63 221040
ECM24+ECM90IECM 24X56 Left battery opening90-110100-1205602,65 2,95 241080
HARROWS Serrated discs ECS SERIES Left STANDARD batteries opening
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRANSPORT DIMENSIONSS DE TRANSPORT mtN° DiscsWEIGHT Kg
ECS16+ECM90IECS 16X61 Left battery opening45-5550-606101,75 2,02 16940
ECS18+ECM90IECS 18X61 Left battery opening50-6060-806102,00 2,29 181000
ECS20+ECM90IECS 20X61 Left battery opening60-7580-906102,20 2,51 201040
ECS22+ECM90IECS 22X61 Left battery opening75-9090-1006102,45 2,63 221100
ECS24+ECM90IECS 24X61 Left battery opening90-110100-1206102,65 2,95 241200

Serrated discs HARROWS Serrated discs ECM SERIES Right STANDARD batteries opening
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRANSPORT DIMENSIONSS DE TRANSPORT mtN° DiscsWEIGHT Kg
ECM16DX+ECM90IDXECM 16X56 Right battery opening45-5550-605601,75 2,02 16910
ECM18droite+ECM90IdroiteECM 18X56 Right battery opening50-6060-805602,00 2,29 18960
ECM20droite+ECM90IdroiteECM 20X56 Right battery opening60-7580-905602,20 2,51 20990
ECM22droite+ECM90IdroiteECM 22X56 Right battery opening75-9090-1005602,45 2,63 221040
ECM24droite+ECM90IdroiteECM 24X56 Right battery opening90-110100-1205602,65 2,95 241080
HARROWS Serrated discs ECS SERIES Right STANDARD batteries opening
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRANSPORT DIMENSIONSS DE TRANSPORT mtN° DiscsWEIGHT Kg
ECS16droite+ECM90IdroiteECS 16X61 Right battery opening45-5550-606101,75 2,02 16940
ECS18droite+ECM90IdroiteECS 18X61 Right battery opening50-6060-806102,00 2,29 181000
ECS20droite+ECM90IdroiteECS 20X61 Right battery opening60-7580-906102,20 2,51 201040
ECS22droite+ECM90IdroiteECS 22X61 Right battery opening75-9090-1006102,45 2,63 221100
ECS24droite+ECM90IdroiteECS 24X61 Right battery opening90-110100-1206102,65 2,95 241200

























Serrated discs HARROWS à Discs SERIES OTI K

TO TOP

NON-FOLDING OTIK SERIES HARROWS Serrated discs
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRANSPORT DIMENSIONSS DE TRANSPORT mtN° DiscsWEIGHT Kg
ECK6122+EC5600OTI K 22X6175-8580-1006102,45 2,80 221370
ECK6124+EC5600OTI K 24X6185-95100-1206102,65 3,00 241440
ECK6126+EC5600OTI K 26X6190-100100-1256102,90 3,25 261520
ECK6128+EC5600OTI K 28X6190-110100-1306103,15 3,50 281600
ECK6132+EC5600OTI K 32X61100-120120-1506103,60 3,95321760
FOLDING OTIK SERIES HARROWS Serrated discs
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRASP. mtN° DiscsWEIGHT Kg
ECK24R+EC5600OTI K 24X61 R85-9590-1206102,65 entro 2,50 241640
ECK26R+EC5600OTI K 26X61 R90-100100-1256102,90 entro 2,50 261720
ECK28R+EC5600OTI K 28X61 R90-110100-1306103,15 entro 2,50281800
ECK30R+EC5600OTI K 32X61 R100-110120-1306103,38 entro 2,50301890
ECK32R+EC5600OTI K 32X61 R110-120120-1506103,60 entro 2,50321980

























Serrated discs HARROWS à Discs SERIES OTV

TO TOP

Serrated discs HARROWS SERIES OTV
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRASP. mtN° DiscsWEIGHT Kg
ECV6124R4+ECV61OTV 24X6190-110110-1206102,65 entro 2,50 242100
ECV6126R4+ECV61OTV 26X6195-115110-1256102,90 entro 2,50 262140
ECV6128R4+ECV61OTV 28X61100-120110-1306103,15 entro 2,50282200
ECV6130R4+ECV61OTV 30X61110-130120-1406103,38 entro 2,50302260
ECV6132R4+ECV61OTV 32X61120-140130-1506103,60 entro 2,50322320

























Serrated discs HARROWS à Discs SERIES OTV

TO TOP

Serrated discs HARROWS OTI 61 NON-FOLDING SERIES
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRASP. mtN° DiscsWEIGHT Kg
EC6122+EC6100OTI 22X6190-100100-1106102,45 2,80 221992
EC6124+EC6100OTI 24X6190-110110-1206102,65 3,00 242030
EC6126+EC6100OTI 26X6195-115110-1256102,90 3,25262100
EC6128+EC6100OTI 28X61100-120110-1306103,15 3,50282160
EC6132+EC6100OTI 32X61110-130120-1406103,60 3,95322460

Serrated discs HARROWS OTI 61 FOLDABLE SERIES
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRASP. mtN° DiscsWEIGHT Kg
EC6132R+EC6100OTI R 32X61110-130120-1406103,60 entro 2,50 322650
EC6136R+EC6100OTI R 36X61130-160140-1806104,05 entro 2,50362850
EC6140R+EC6100LOTI R 40X61150-180180-2206104,50 entro 3,00403200
EC6142R+EC6600LOTI R 42X61180-200200-2506104,75 entro 3,00423680
EC6146R+EC6600LOTI R 46X61200-250250-3006105,20 entro 3,00463880


Serrated discs HARROWS OTI 66 SERIES NON-FOLDABLE
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRASP. mtN° DiscsWEIGHT Kg
EC6624+EC6600OTI 24X66120-140160-1806603,00 3,35242860
EC6626+EC6600OTI 26X66130-150170-1906603,25 3,60262960
EC6628+EC6600OTI 28X66140-160180-2006603,50 3,85283060
EC6632+EC6600OTI 32X66160-200200-2506604,30 4,65323260

Serrated discs HARROWS OTI 66 FOLDABLE SERIES
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRASP. mtN° DiscsWEIGHT Kg
EC6632R+EC6600OTI R 32X66160-200200-2206604,30 entro 3,00 323610
EC6636R+EC6600OTI R 36X66200-220220-2506604,51 entro 3,00363900
EC6640R+EC6600OTI R 40X66220-250250-3006605,06 entro 3,00404300
EC6644R+EC6600OTI R 44X66250-300300-3506605,58 entro 3,00444500
EC6648R+EC6600OTI R 48X66>300>3506606,10 entro 3,20484880


Serrated discs HARROWS OTI 71 NON-FOLDABLE SERIES
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRASP. mtN° DiscsWEIGHT Kg
EC7124+EC6600OTI 24X71120-150160-1907103,00 3,35243060
EC7126+EC6600OTI 26X71130-160170-2007103,25 3,60263180
EC7128+EC6600OTI 28X71150-170180-2007103,50 3,85283310
EC7132+EC6600OTI 32X71170-220200-2607104,30 4,65323510

Serrated discs HARROWS SERIES OTI 71 REPLIABLES
CODEDESCRIPTIONHP CRAWLER TRACTORSHP WHEEL TRACTORS Ø Discs mmWORKING WIDTH mtTRASP. mtN° DiscsWEIGHT Kg
EC7132R+EC6600OTI R 32X71170-220200-2207104,30 entro 3,00323860
EC7136R+EC6600OTI R 36X71210-240220-2507104,54 entro 3,00364200
EC7140R+EC7100OTI R 40X71220-250250-3007105,10 entro 3,00404770
EC7144R+EC7100OTI R 42X71250-300300-3507105,60 entro 3,00445000
EC7148R+EC7100OTI R 46X71>300>3507106,10 entro 3,20485280
