technical data Plows

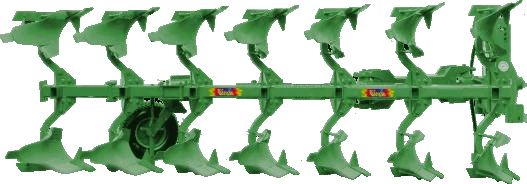

REVERSIBLE PLOUGHS DEPTH FROM 15 TO 25 CENTIMETERS ARECO SERIES
Reversible ploughs from 3 to 5 bodies in furrow; from 6 to 8 bodies out furrow.
Compromise between traditional treatment and conservative treatment, in fact, if we work the soil at a depth of 15 to 25 centimeters, we achieve burial of residue and weed control, avoiding inversion of the deeper layers.

Standard configuration
In-furrow plow from 3 to 5 furrows - Out-furrow plow from 6 to 8 furrows
180 ° hydraulic reversal.
Shear bolt security.

Optional accessories:
Hydraulic displacement for edge finishes.
Depth wheel.
Reversal memory device.
Hydraulic alignment of the chassis.

TECHNICAL DATA SERIES ARECO

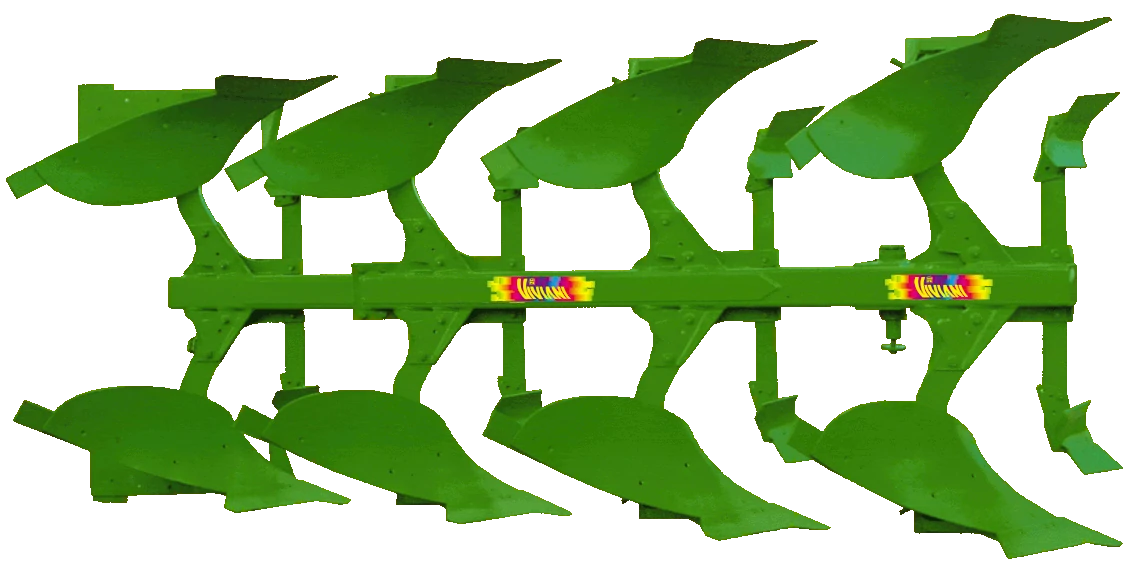

REVERSIBLE PLOUGHS FIXEDD WORKING WIDTH SERIES AR_R_X

Reversible ploughs from 1 to 4 bodies.

Standard configuration
In-furrow plough
180 ° hydraulic reversal.
Shear bolt security.
Moldboard skimmer.

Optional accessories:
Out-furrow plough except single corp.
Hydraulic displacement for edge finishes.
Slatted mouldboards.
Mouldboards for wide furrows.
Teflon mouldboards.
Depth wheel.
Reversal memory device.
Hydraulic alignment of the chassis.

TECHNICAL DATA SERIES AR_R_X

ARATRI REVERSIBILI A LARGHEZZA VARIABILE

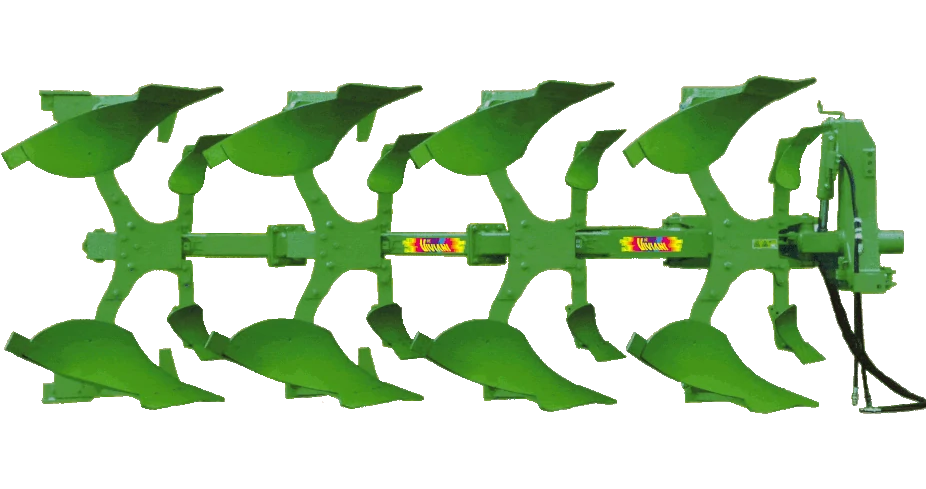

REVERSIBLE PLOUGHS WITH VARIABLE WORKING WIDTH SERIES AR_R_VX

Reversible ploughs from 2 to 4 bodies.

Standard configuration
Continuously variable working width.
In-furrow plough.
180 ° hydraulic reversal.
Shear bolt security.
Moldboard skimmer.

Optional accessories:
Out-furrow plough.
Hydraulic displacement for edge finishes.
Slatted mouldboards.
Mouldboards for wide furrows.
Teflon mouldboards.
Depth wheel.
Reversal memory device.
Hydraulic alignment of the chassis.

TECHNICAL DATA SERIES AR_R_VX

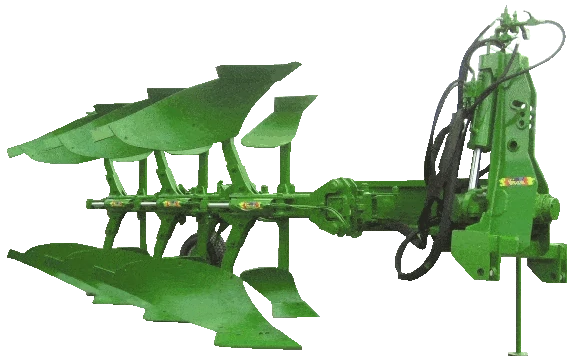

NON STOP REVERSIBLE PLOUGHS

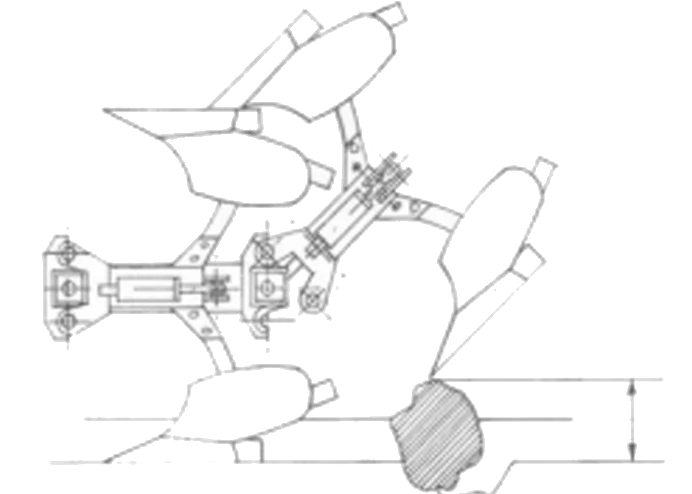

The hydraulic safety system regulates the resistance of the body allowing it to rise when it encounters an obstacle and return to the ground slowly and quickly after passing it.
The hydraulic safety system allows NON-STOP ploughs to work well even in particularly stubborn soils, simply increasing the pressure of the hydraulic system.

NON STOP REVERSIBLE PLOUGHS SERIES ARI_R_ E ARI_R_V

NON STOP reversible ploughs from 2 to 4 bodies.

ARI_R_ SERIES WITH FIXEDD WORKING WIDTH

Standard configuration
Fixd working width.
In-furrow plough.
180 ° hydraulic reversal.
Hydraulic safety.
Moldboard skimmer.

Optional accessories:
Out-of-furrow plough.
Hydraulic displacement for edge finishes.
Slatted mouldboards.
Mouldboards for wide furrows.
Teflon mouldboards.
Depth wheel.
Reversal memory device.
Hydraulic alignment of the chassis.

SERIES ARI_R_V VARIABLE WORKING WIDTH

Standard configuration
Continuously variable working width.
In-furrow plough.
180 ° hydraulic reversal.
Hydraulic safety.
Moldboard skimmer.

Optional accessories:
Out-of-furrow plough.
Hydraulic displacement for edge finishes.
Slatted mouldboards.
Mouldboards for wide furrows.
Teflon mouldboards.
Depth wheel.
Reversal memory device.
Hydraulic alignment of the chassis.

TECHNICAL DATA SERIES ARI_R_ E ARI_R_V

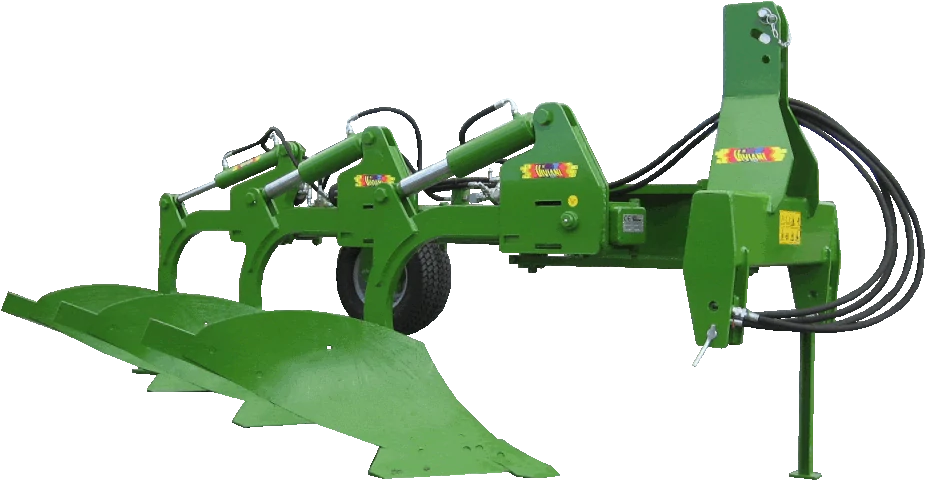

IN-FURROW PLOUGHS. NON-STOP LINE MOUNTED.
from 2 to 3 bodies. SERIES API_AT

Standard configuration
Direct hitch.
In-furrow plough.
Hydraulic safety.

Optional accessories:
Moldboard skimmer.
Depth wheel.
Hydraulic lifting of the last body.

OUT FURROW PLOW. NON-STOP LINE MOUNTED
from 3 to 4 bodies.SERIES API+APT

Standard configuration
Out-of-furrow plough.
Hydraulic safety.

Optional accessories:
Moldboard skimmer.
Depth wheel.
Hydraulic lifting of the last body.

TECHNICAL DATA SERIES API_AT E API+APT

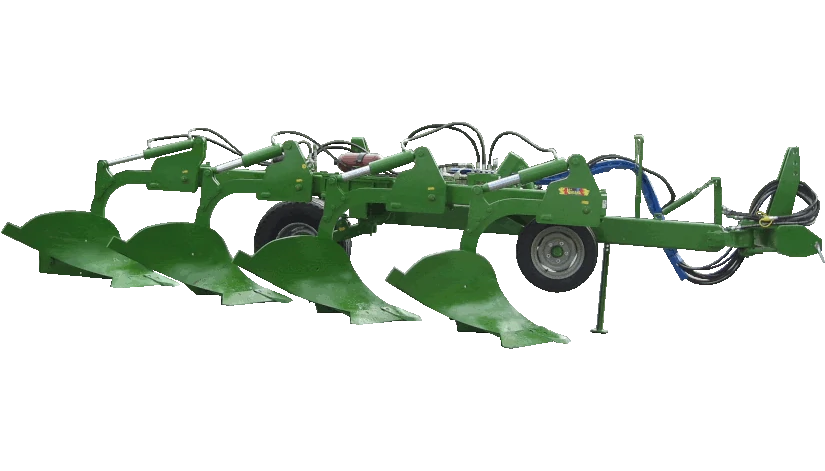

NON-STOP SEMI-MOUNTED INLINE PLOUGHS..
from 3 to 4 bodies. SERIES API_P+APTSMP

Standard configuration
Semi-mounted hitch.
Hydraulic safety.

Optional accessories:
Moldboard skimmer.
Depth wheel.
Hydraulic lifting of the last body.

TECHNICAL DATA SERIES API_P+APTSMP

PLOW MOUNTED IN LINE, DIRECT HITCH.
de 2 à 4 corps. SERIES AD_

Standard configuration
Direct hitch.
Shear bolt security.
Ploughshare with beveled tip bar.

Optional accessories:

Depth wheel.

TECHNICAL DATA SERIES AD_

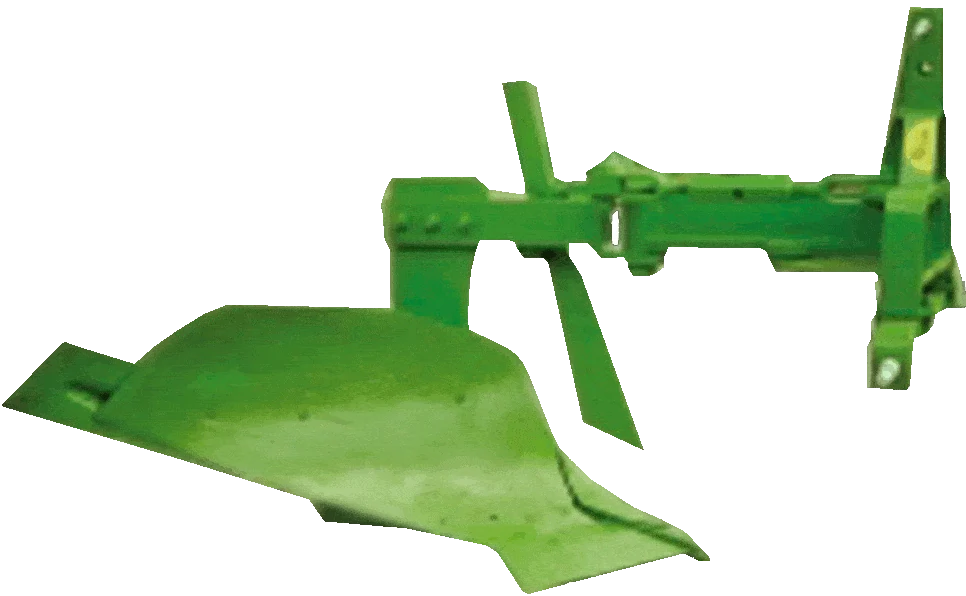

MOUNTED PLOUGHS HYDRAULIC LATERAL DISPLACEMENT .
dE 1 à 2 corps. SERIES APR

Standard configuration
Hydraulic lateral displacement.
Shear bolt security.
Ploughshare with beveled tip bar.

Optional accessories:
Depth wheel.

TECHNICAL DATA SERIES APR_

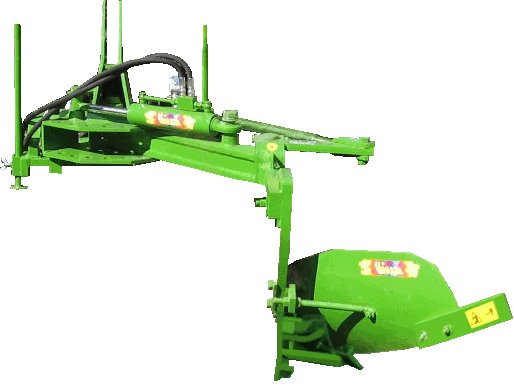

MOUNTED PLOUGHS HYDRAULIC LATERAL DISPLACEMENT In-furrow plough. AND/OR Out-of-furrow plough.
From 1 to 2 bodies. SERIES APC.

APC30NSI and APC40NSI Out-of-furrow plough. for wide tractors ≤ of mt 1,65
APC70NSI and APC80NSI Out-of-furrow plough. for wide tractors ≥ of 1,65 and ≤ of mt 1,85

Standard configuration
Hydraulic lateral displacement.
Shear bolt security.
Ploughshare with beveled tip bar.

Optional accessories:
Depth wheel.

TECHNICAL DATA SERIES APC_

TO TOP

**ARECO SERIES REVERSIBLE PLOUGHS. IN-FURROW**
CODE	DESCRIPTION	HP	N° BODIES	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
ARECO3	Plow 3 bodies in-furrow	60-90	3	15-25	95-105	600
ARECO4	Plow 4 bodies in-furrow	70-100	4	15-25	130-140	700
ARECO5	Plow 5 bodies in-furrow	90-130	5	15-25	160-170	1020

**ARECO SERIES REVERSIBLE PLOUGHS.OUT FURROW**
CODE	DESCRIPTION	HP	N° BODIES	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
ARECO6	Plow 6 bodies out-furrow	120-160	6	15-25	200-210	1400
ARECO7	Plow 7 bodies out-furrow	130-190	7	15-25	230-250	1580
ARECO8	Plow 8 bodies out-furrow	160-220	8	15-25	270-290	1770

TO TOP

**REVERSIBLE PLOUGHS SERIES AR_R_X**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
AR2R1LX	200R1L 1 body	50-65	30-35	35	370
AR4R1X	400R1L 1 body	60-80	35-45	40	550
AR5R1X	500R1L 1 body	65-90	37-47	45	600
AR200R2X	200R2 fixed 2 bodies	60-85	25-35	70	700
AR300R2X	300R2 fixed 2 bodies	70-100	30-40	75	800
AR400R2X	400R2 fixed 2 bodies	90-120	35-45	80	1050
AR500R2X	500R2 fixed 2 bodies	120-150	37-47	90	1300
AR200R3X	200R3 fixed 3 bodies	85-120	25-36	105	830
AR300R3X	300R3 fixed 3 bodies	95-130	30-40	110	1140
AR400R3X	400R3 fixed 3 bodies	140-180	35-45	120	1350
AR500R3X	500R3 fixed 3 bodies	160-200	37-47	130	1600
AR600R3X	600R3 fixed 3 bodies	200-240	40-50	140	1900
AR200R4X	200R4 (3+1) fixed 4 bodies	120-150	25-36	140	1210
AR300R4X	300R4 (3+1) fixed 4 bodies	130-180	30-40	150	1400
AR400R4X	400R4 (3+1) fixed 4 bodies	160-230	35-45	170	1700
AR450R4X	450R4 (3+1) fixed 4 bodies	230-280	35-47	170	2050

TO TOP

**REVERSIBLE PLOUGHS VARIABLE WORKING WIDTH SERIES AR_R_VX**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
AR5R2VX	500R2 2 bodies	130-180	37-47	50-120	1580
AR2R3VX	200R3 3 bodies	80-120	25-35	75-180	1040
AR3R3VX	300R3 3 bodies	100-140	30-40	75-180	1230
AR4R3VX	400R3 3 bodies	160-200	35-45	75-180	1650
AR5R3VX	500R3 3 bodies	180-240	37-47	75-190	1950
AR6R3VX	600R3 3 bodies	220-300	40-50	100-210	2250
AR2R4VX	200R4 4 bodies	120-160	25-35	100-200	1360
AR3R4VX	300R4 4 bodies	140-190	30-40	100-240	1600
AR4R4VX	400R4 4 bodies	160-230	30-40	100-250	2080
AR45R4VX	450R4 4 bodies	230-280	30-40	100-260	2430

TO TOP

**NON STOP REVERSIBLE PLOUGHS ARI_R**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
ARI3R2	300R2I 2 bodies	85-120	30	80	950
ARI4R2	400R2I 2 bodies	110-140	35	86	1200
ARI3R3	300R3I 3 bodies	110-150	30	120	1280
ARI4R3	400R3I 3 bodies	180-200	35	129	1550
ARI3R4	300R4I 4 bodies	180-220	30	160	1620
ARI4R4	400R4I 4 bodies	200-280	35	172	2000

**NON STOP REVERSIBLE PLOUGHS VARIABLE WORKING WIDTH ARI_R_V**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
ARI3R3V	300R3ILV 3 bodies	115-160	25-35	75-150	1520
ARI4R3V	400R3ILV 3 bodies	160-220	30-40	75-150	1900
ARI3R4V	300R4ILV 4 bodies	160-220	25-35	100-200	2100
ARI4R4V	400R4ILV 4 bodies	200-280	30-40	100-200	2400

TO TOP

**NON-STOP LINE-MOUNTED PLOUGHS**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
API223AT	in-furrow fixed attelage direct 2 bodies	60-80	30-40	75	550
API255AT	in-furrow fixed attelage direct 2 bodies	80-110	37-47	88	800
API323AT	in-furrow fixed attelage direct 3 bodies	80-120	30-40	120	785
API355AT	in-furrow fixed attelage direct 3 bodies	130-180	37-47	145	1050
API423AT	in-furrow fixed attelage direct 4 bodies	110-140	30-40	150	885
API454AT	in-furrow fixed attelage direct 4 bodies	170-220	35-45	170	1220
API455AT	in-furrow fixed attelage direct 4 bodies	200-240	37-47	190	1310

**NON-STOP LINE-MOUNTED PLOUGHS. OFF-FURROW**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
API355+APT50F	AP5/500 3 bodies out-furrow td>	130-180	37-47	145	1230
API454+APT50F	AP5/400 4 bodies out-furrow td>	170-220	35-45	170	1670
API455+APT50F	AP5/500 4 bodies out-furrow td>	200-240	37-47	190	1730

**NON STOP SEMI-MOUNTED IN LINE PLOUGHS**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
API354P+APT23SMP	AP5/400 semi-portée 3 bodies	90-130	30-45	120	1200
API355P+APT53SMP	AP5/500 semi-portée 3 bodies	140-180	37-47	145	1800
API454P+APT24SMP	AP5/400 semi-portée 4 bodies	180-220	30-45	170	2100
API455P+APT54SMP	AP5/500 semi-portée 4 bodies	200-240	37-47	180	2400

TO TOP

**PLOW MOUNTED IN LINE, DIRECT HITCH 2 BODIES**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
ADB030	B30 2 bodies	30-45	28	58	180
ADB040	B40 2 bodies	45-55	32	66	280
ADB050	B50 2 bodies	55-60	35	75	390
ADB060	B60 2 bodies	60-70	38	80	450
ADB070	B70 2 bodies	70-75	43	85	500
ADB075	B75 2 bodies	75-85	45	90	530
ADB080	B80 2 bodies	85-90	48	90	600
ADB090	B90 2 bodies	90-100	50	100	700
ADB100	B100 2 bodies	100-120	53	100	780

**PLOW MOUNTED IN LINE, DIRECT HITCH 3 BODIES**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
ADT040	T40 3 bodies	50-60	28	90	300
ADT050	T50 3 bodies	60-70	30	100	440
ADT060	T60 3 bodies	70-80	35	110	530
ADT080	T80 3 bodies	80-100	40	120	600
ADT100	T100 3 bodies	100-130	45	135	850
ADT120	T120 3 bodies	130-180	50	150	1030

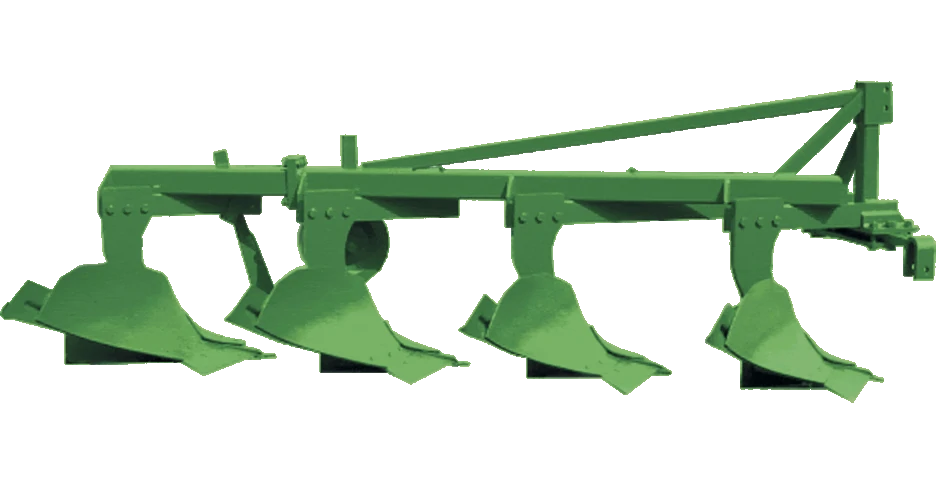

**PLOW MOUNTED IN LINE, DIRECT HITCH 4 BODIES**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
ADQT040	QT40 4 bodies	70-80	25	120	350
ADQT050	QT50 4 bodies	90-110	28	135	530
ADQT060	QT60 4 bodies	110-130	30	150	720
ADQT080	QT80 4 bodies	130-150	35	160	830
ADQT100	QT100 4 bodies	150-180	40	170	1050

TO TOP

**LATERAL DISPLACEMENT PLOUGHS 1 BODIE SERIES APR**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
APR30P1+APR30P0I	30P1 hydraulic side shift 1 bodies	30-50	35	35	200
APR40P1+APR40P0I	40P1 hydraulic side shift 1 bodies	50-60	40	40	260
APR50P1+APR50P0I	50P1 hydraulic side shift 1 bodies	60-70	45	45	375
APR60P1+APR60P0I	60P1 hydraulic side shift 1 bodies	70-80	50	50	450
APR70P1+APR70P0I	70P1 hydraulic side shift 1 bodies	80-90	50	50	490

**LATERAL DISPLACEMENT PLOUGHS 2 BODIES SERIES APR**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
APR30P2+APR30P0I	30P2 hydraulic side shift 2 bodies	30-50	28	60	285
APR40P2+APR40P0I	40P2 hydraulic side shift 2 bodies	50-60	32	66	310
APR50P2+APR50P0I	50P2 hydraulic side shift 2 bodies	60-70	35	75	445
APR60P2+APR60P0I	60P2 hydraulic side shift 2 bodies	70-80	38	80	530
APR70P2+APR70P0I	70P2 hydraulic side shift 2 bodies	80-90	43	80	560
APR80P2+APR80P0I	80P2 hydraulic side shift 2 bodies	90-110	48	90	665

TO TOP

**LATERAL DISPLACEMENT PLOUGHS 1 BODIE SERIES APC**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
APC30P1+APC30NSI	30P1C hydraulic side shift 1 bodies	35-45	32	35	250
APC30P1S+APC30NSI	30P1C gauche hydraulic side shift 1 bodies	35-45	32	35	250
APC40P1+APC40NSI	40P1C hydraulic side shift 1 bodies	45-60	35	40	360
APC40P1S+APC40NSI	40P1C gauche hydraulic side shift 1 bodies	45-60	35	40	360
APC70P1+APC70NSI	70P1C hydraulic side shift 1 bodies	60-75	40	45	470
APC70P1S+APC70NSI	70P1C gauche hydraulic side shift 1 bodies	60-75	40	45	470
APC80P1+APC80NSI	80P1C hydraulic side shift 1 bodies	75-85	45	50	505
APC80P1S+APC80NSI	80P1C gauche hydraulic side shift 1 bodies	78-85	45	50	505

**LATERAL DISPLACEMENT PLOUGHS 2 BODIES SERIES APC**
CODE	DESCRIPTION	HP	DEPTH cm	\|↔\| WORKING WIDTH cm	WEIGHT Kg
APC30P2+APC30NSI	30P2C hydraulic side shift 2 bodies	30-50	28	60	340
APC40P2+APC40NSI	40P2C hydraulic side shift 2 bodies	50-60	30	66	400
APC70P2+APC70NSI	70P2C hydraulic side shift 2 bodies	60-70	38	75	530
APC80P2+APC80NSI	80P2C hydraulic side shift 2 bodies	70-80	40	80	605

©2020 Mipe Viviani srl - Strada Prov.le Colligiana 12 - 53035 Monteriggioni
Tel. +39 0577 304069 Fax +39 0577 304070

Legal Policy | Disclaimer |
